Brake Pedal Linkage
The iBooster for the Tesla Model Y comes with a Y-fork that is threaded onto the end of the push rod. It's a M8x1.5 thread. Simply replace the fork with a DIN 71752 clevis to connect to your brake pedal. I used the following parts from McMaster-Carr:
| Part Number | Description | Link |
|---|---|---|
| 2448K47 | Clevis Rod End M8 x 1.25mm Shank Thread, 31.75mm Shank Center Length | https://www.mcmaster.com/2448K47 |
| 6389K731 | Nylon Sleeve Bearing for 8 mm Shaft Diameter, for 12 mm Housing ID, 8 mm Long | https://www.mcmaster.com/6389K731 |

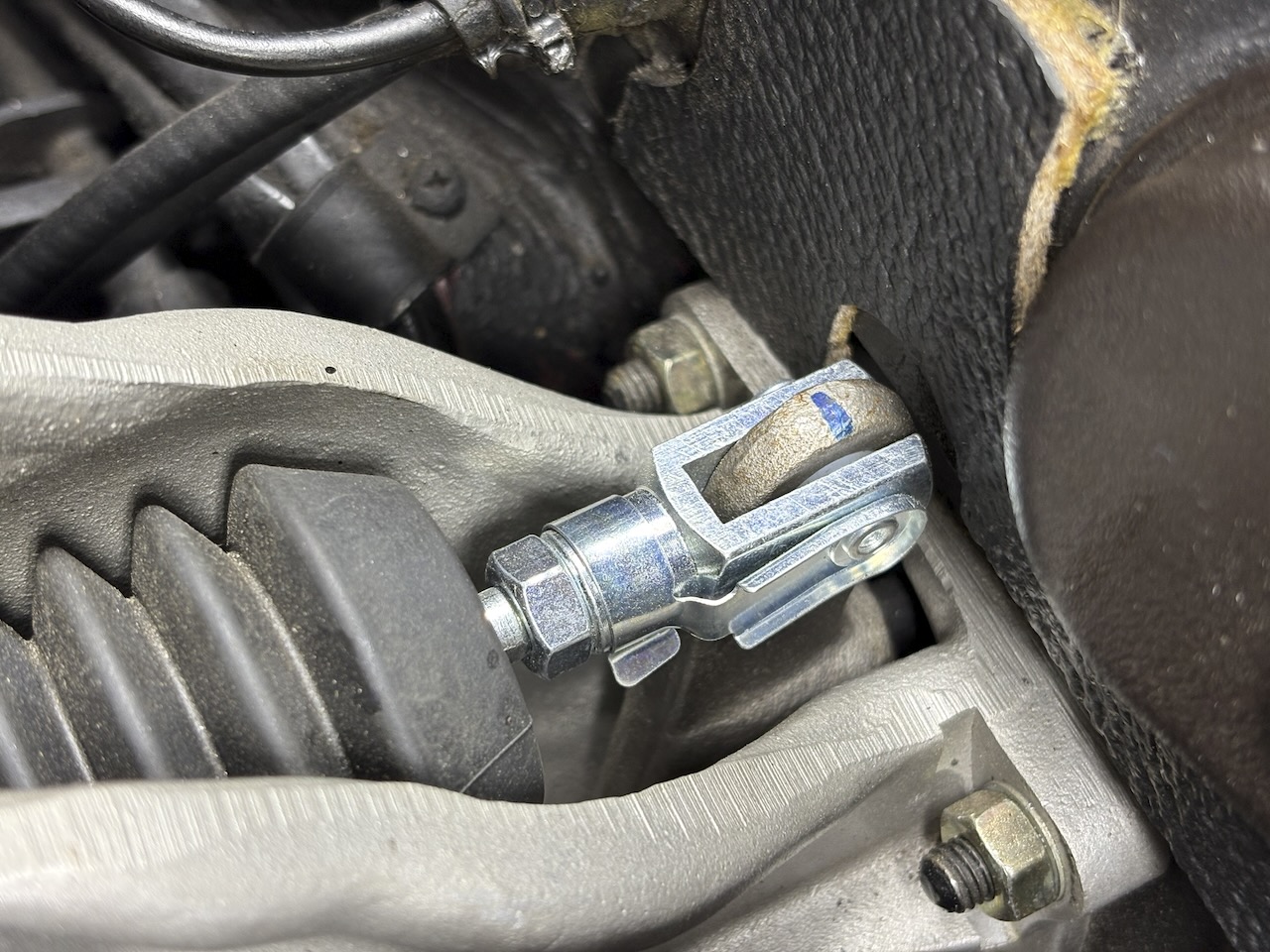

Replace Y-fork with DIN
